Bearings are used to describe direction accurately, especially on maps and diagrams. A 3 figure bearing gives a precise direction measured clockwise from north.





What a 3 Figure Bearing Is

A bearing is an angle measured clockwise from north.



3 figure bearings are always written using three digits, even if the angle is less than 100 degrees.



This ensures clarity and avoids confusion.



Examples of bearings include:
045°, 090°, 180°, 275°







Understanding North and Direction

North is the fixed reference direction for all bearings.



On diagrams:
• north is usually shown by an arrow or at the top of the page
• bearings are measured clockwise from north



A full turn around a point is 360°.





Interpreting 3 Figure Bearings

To interpret a bearing, imagine standing at the starting point and facing north.



Then rotate clockwise through the given angle.



Example
A bearing of
\( 060^\circ \)



means turning 60 degrees clockwise from north.



A bearing of
\( 180^\circ \)



points directly south.

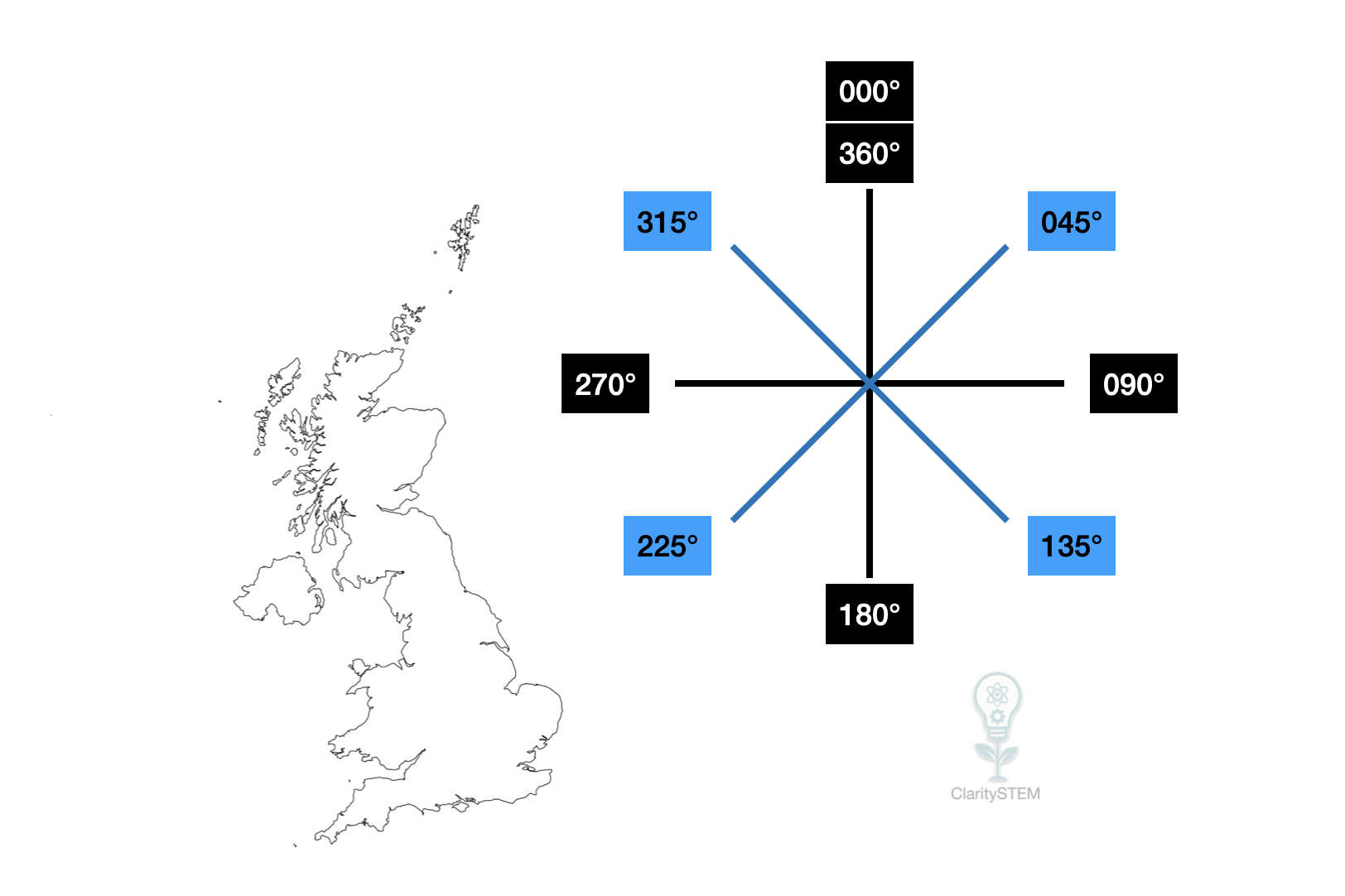

Key bearings to recognise include:
• east at 090°
• south at 180°
• west at 270°



The three digits must always be written, including leading zeros





Drawing 3 Figure Bearings

To draw a bearing accurately, use a ruler and protractor.



Steps to draw a bearing:

• draw a north line from the starting point
• place the centre of the protractor at the starting point
• align the zero line with the north direction
• measure the angle clockwise
• mark the direction
• draw a straight line through the mark



The line you draw shows the direction of the bearing.



Example
To draw a bearing of
\( 135^\circ \)



measure 135 degrees clockwise from north and draw the line.





Common Errors to Avoid

Common mistakes when working with bearings include:
• measuring anticlockwise instead of clockwise
• starting from east instead of north
• forgetting to write three digits
• using compass directions instead of degrees



Always check the direction and format carefully.





Interpreting Bearings in Context

Bearings are often used to describe movement between places.



For example:
• the bearing of a ship from a harbour
• the direction of travel between towns on a map



You may need to combine bearings with distance and scale to solve real life problems.





Key Points to Remember

3 figure bearings are measured clockwise from north.
They are always written using three digits.
North is the reference direction for all bearings.
A protractor is used to draw and measure bearings accurately.
Careful alignment prevents common errors.



Understanding and using 3 figure bearings allows directions to be described and drawn accurately in maps and real world situations.
